Description

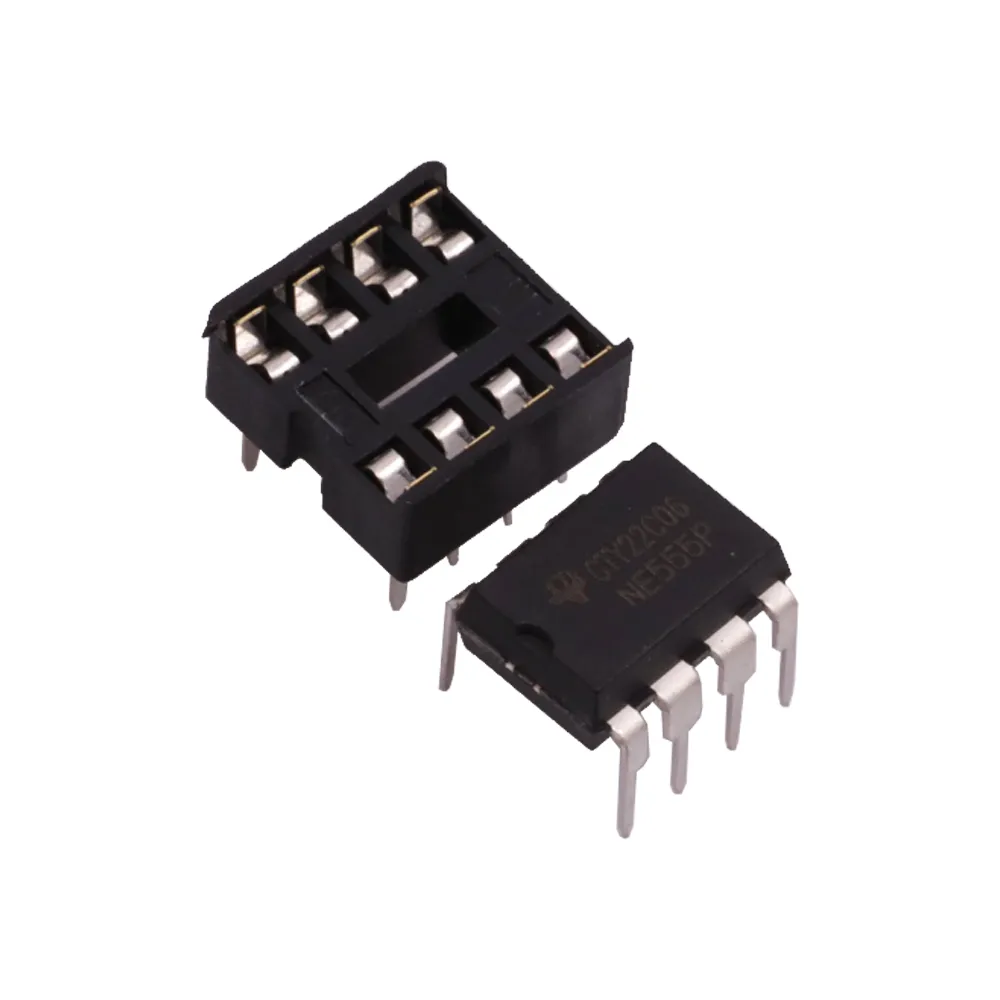

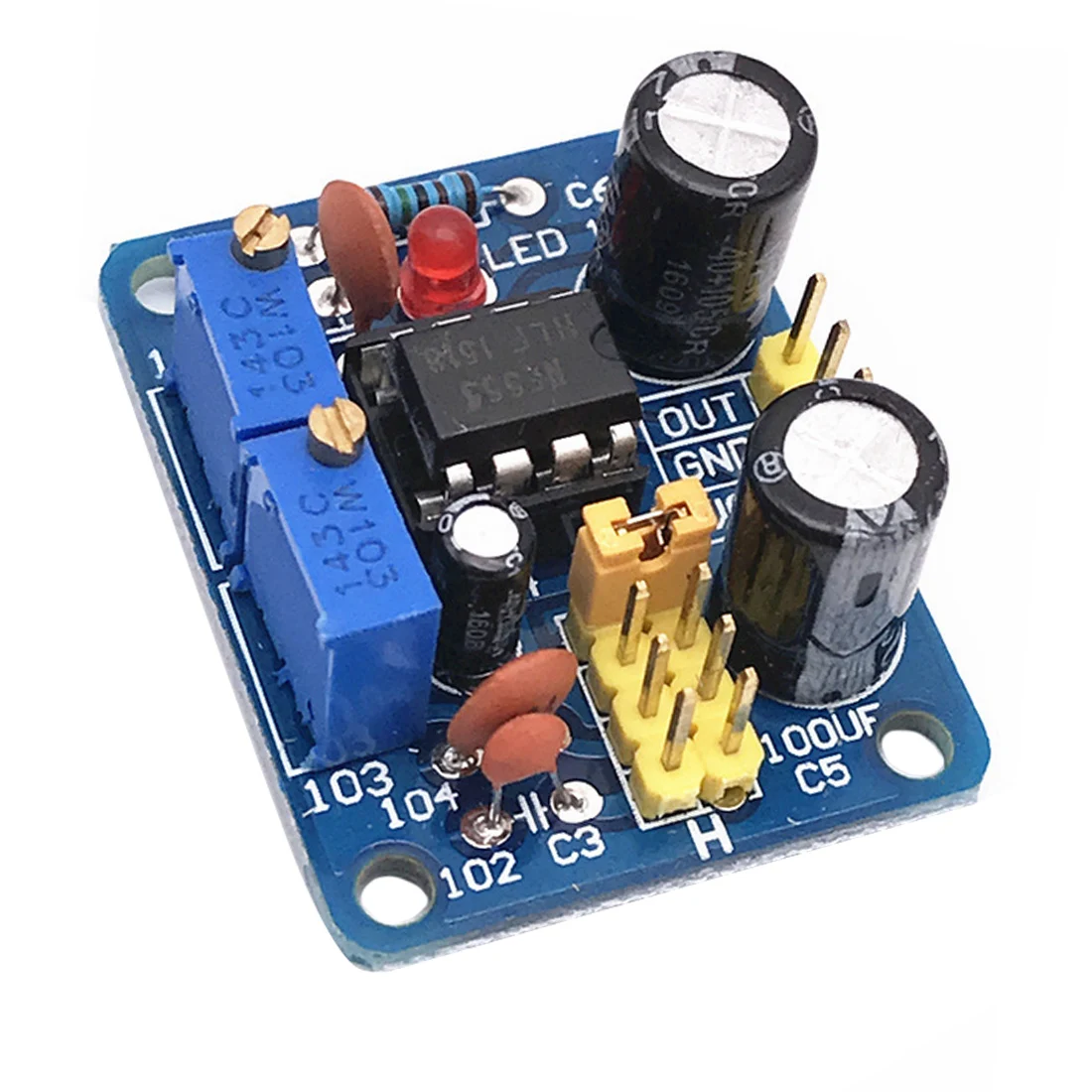

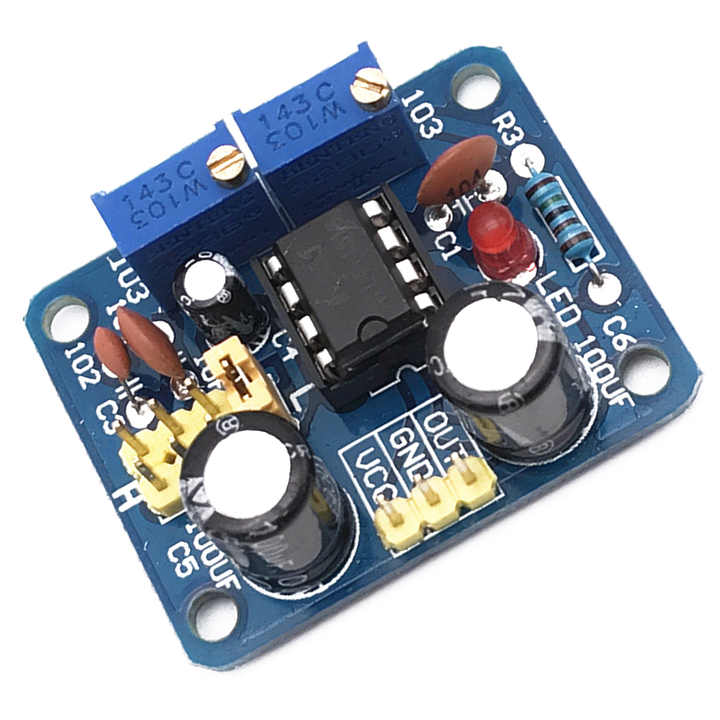

Condition: 100% new Color: As Show in the Picture Main Chip: NE555 Input current: =100MA Input Voltage: 5V-15VDC (when power supply is 5V, the output current can be 15MA around, when 12V power supply, the output current can 35MA around) Output amplitude: 4.2V V-PP to 11.4V V-PP (Different input voltage, the output amplitude will be different) Maximum output current: =15MA (5V power supply, V-PP greater than 50%), =35MA (12V power supply, V-PP greater than 50%) The output frequency range is selectable: LF file: 1Hz ~ 50Hz,IF file: 50Hz ~ 1kHz, High-frequency file: 1KHz ~ 10kHz, HF file: 10kHz ~ 200kHz The output frequency is adjustable: 1) Period T = 0.7 (RA +2 RB) C 2) RA, RB is 0-10K adjustable 3) Low profile when C = 0.001UF 4) IF stalls C = 0.1UF 5) High-frequency file C = 1UF 6) HF stalls C = 100UF (so buyers can calculate the frequency of the waveform. Item included: 1x NE555 Board 16x Accessory Reland Sung
