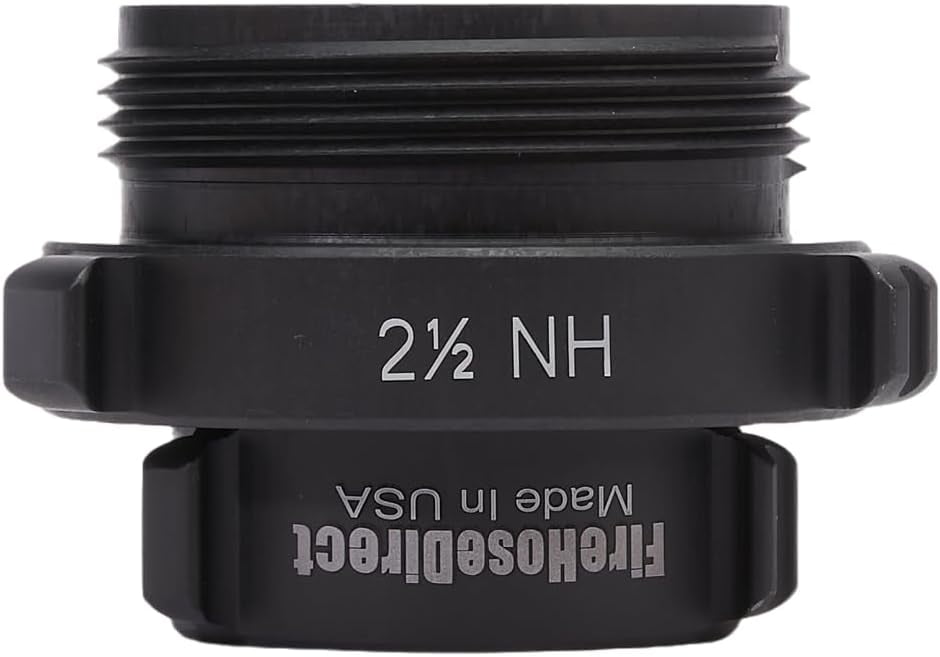

Aluminum 1 Female NH To 2 1/2 Male NH

Aluminum adapters are fabricated from seamless extruded 6061-T6 aluminum and hard coat anodized per MIL-A-8625 Type III, Class 1. Threads have a blunt start Higbee cut with indicators on adjacent lugs. Part identifications are permanent and stamped prior to hardcoat. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread but NST or NH is more common these days. NH = NST. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings. Warning - It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe. NPT: National Pipe Tapered is common in plumbing and some industrial uses. Sometimes referred to as pipe thread because PVC pipe and schedule 40 pipe are typically threaded in NPT. As the two fittings are threaded together the opposite tapers force thread friction and makes the seal without the use of a gasket. Made in the USA Swivel Female Side - 2.5 inch NH / NST The Female Will Only Connect To A Male 2.5 NH / NST Male Side - 1.5 inch NH / NST The Male Will Only Connect To A Female 1.5 NH / NST
